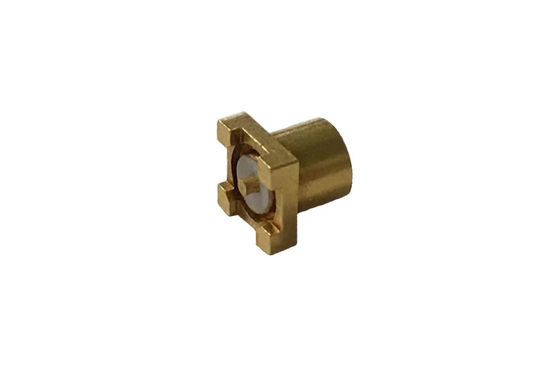

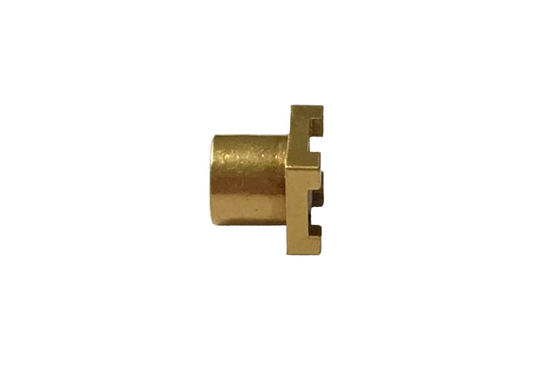

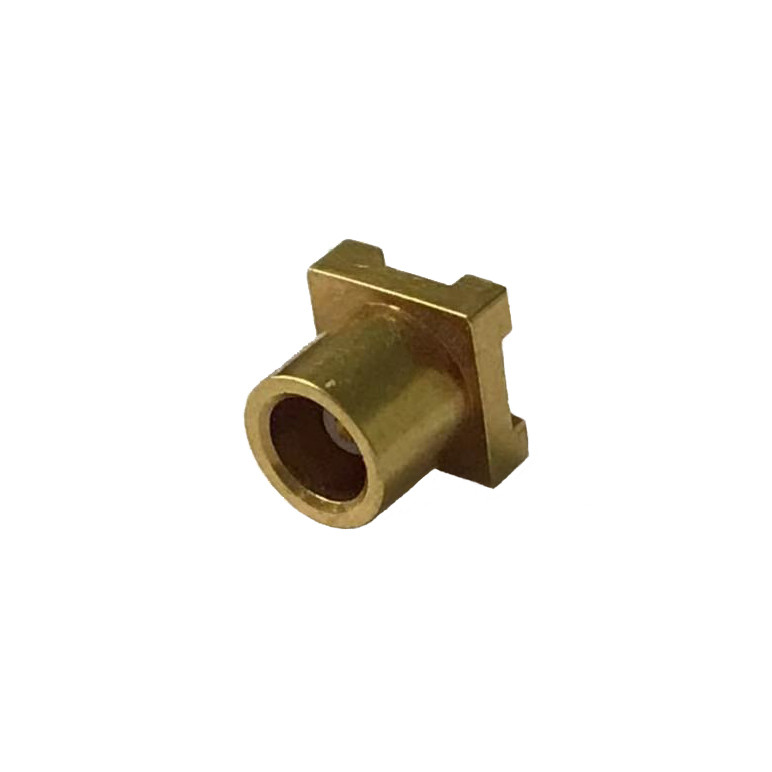

PCB Mounting Waterproof Coaxial Connector MCX Female Coaxial Connector

Products Name: Gold Plated MCX female right angle rf coaxial connector soldering for PCB Mounting

Products Descrption:

MCX connectors use a snap-on interface and usually have a 50 ohm impedance. It offers broadband capability from DC to 6 GHz. They have the same inner contact and insulator dimensions as the SMB connector but are 30% smaller. Miniature snap-on connectors which offer an excellent blend of size, weight, durability, and performance for applications such as GPS, wireless communication, testing, and measurement

Common Application:

we produce and supply in hugh volumn for customers whose are making Antenna, WIFI modules,and electronics products, bluetooth application, etc.

Charaterisitcs:

1. Interface Standard: MCX

2. Type: Connector

3. Gender: Female

4. Impedance: 50 Ohms

5. Structure: Right angle

6. Mounting Type: Soldering for PCB Mounting

7.

Function: It provides a RF signal transmssion while there is a requirement on a small space of installation in customer application.

Sinrui's Advantage and Quality warranty for RF Connectors
