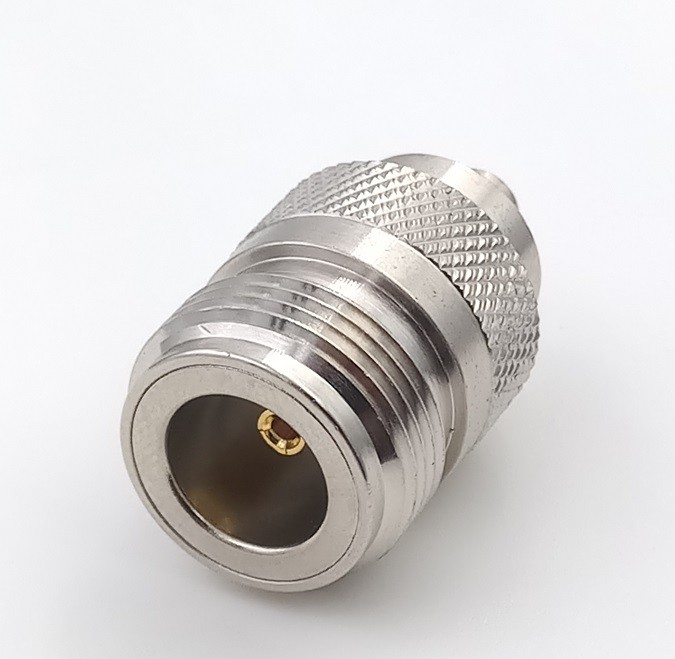

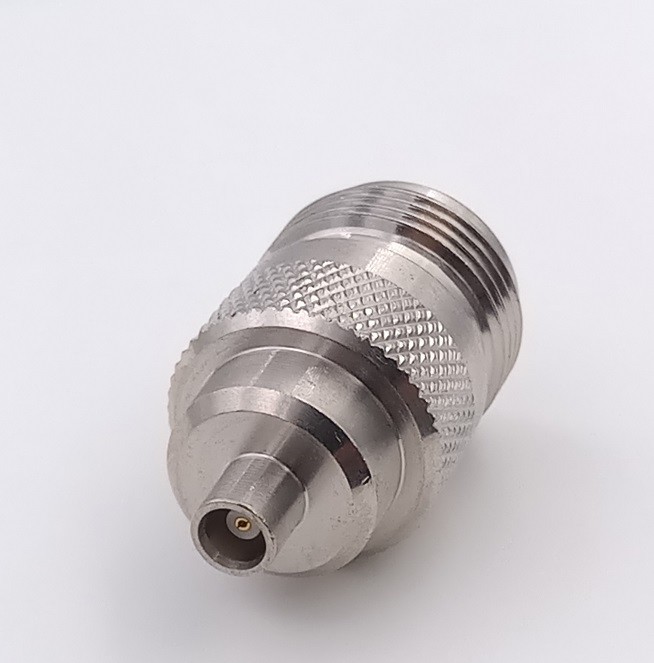

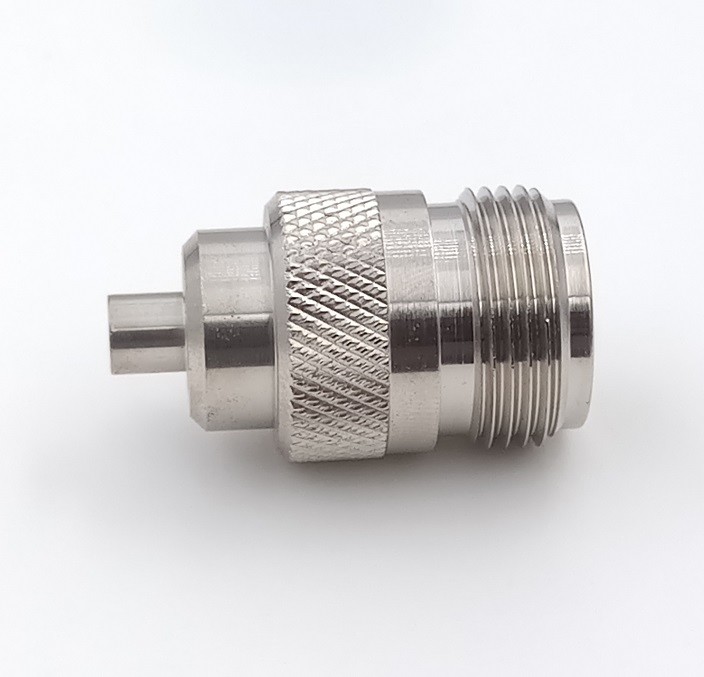

Antenna 6GHz RF Coaxial Connectors N Type Female MCX Female Adapter 50 Ohm

Products Name:  RF DC 6GHz N type Female to MCX female adapter 50 Ohm

Products Descrption:

N connectors have a threaded coupling interface to ensure that it mates correctly. It is available in either 50Ω or 75Ω versions. These two versions have subtle mechanical differences that do not allow the two types to mate. This series of connectors follows the MIL-C-39012. The standard versions are specified for operation up to 11 GHz. The connectors are able to withstand relatively high powers when compared to the BNC or TNC connectors. They are used for many radio frequency applications including broadcast and communication equipments.

Common Application:

we produce and supply in hugh volumn for customers whose are in the fields of Base station, Antenna (outdoor and indoor),

Broadcast devices, wireless communication system, waveguide transmission sytem, and small quanttiy for tester instrument and aviation application.

Charaterisitcs:

1. Interface Standard: N

2. Type: Adapter

3. Gender: Female to female

4. Impedance: 50 Ohms

5. Structure: Straight 180°

6. Mounting Type: N Female to MCX female adapter

7.

Function: It provides an excellent RF signal transmssion, it is widely used in different industrial that it  is approved to be a excellent stable connectors and it can work with most of cables in market.
