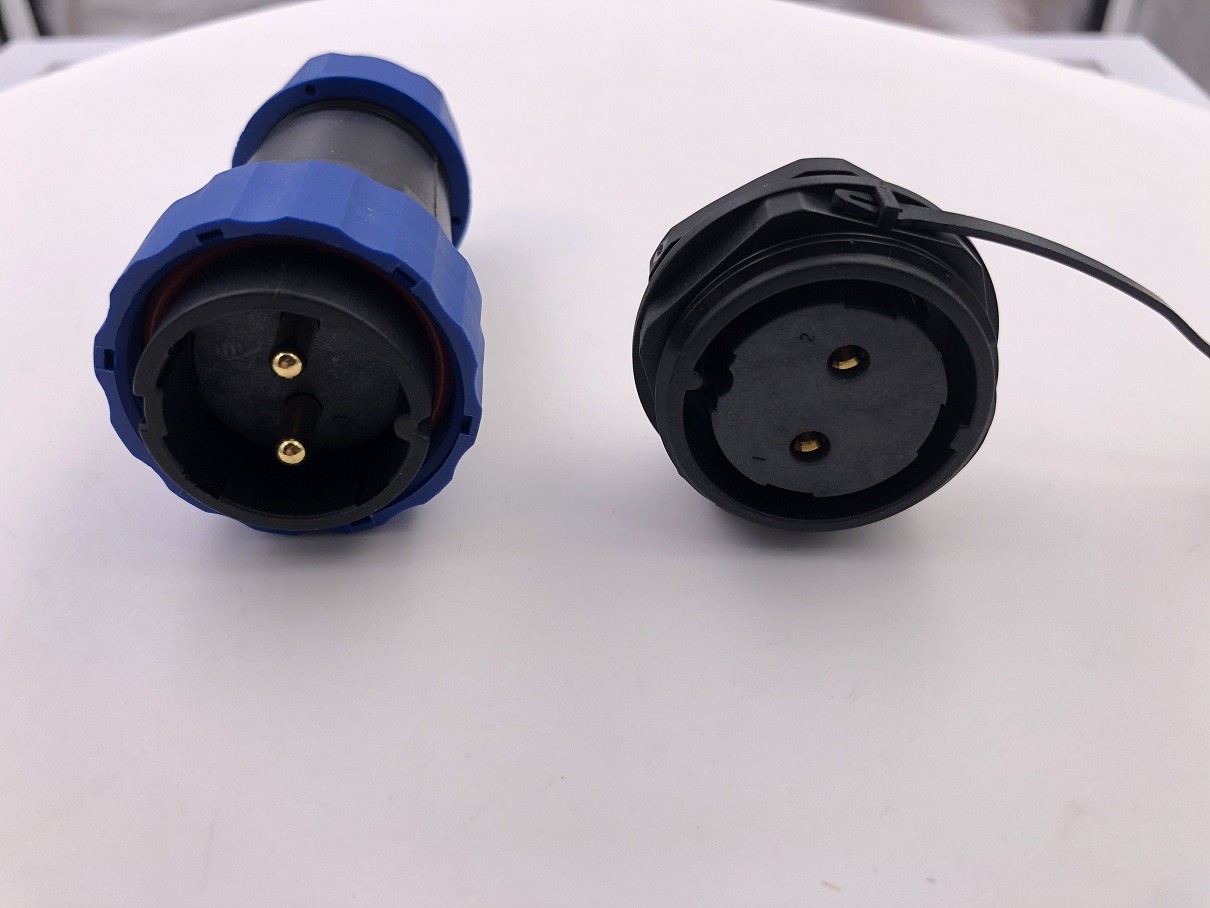

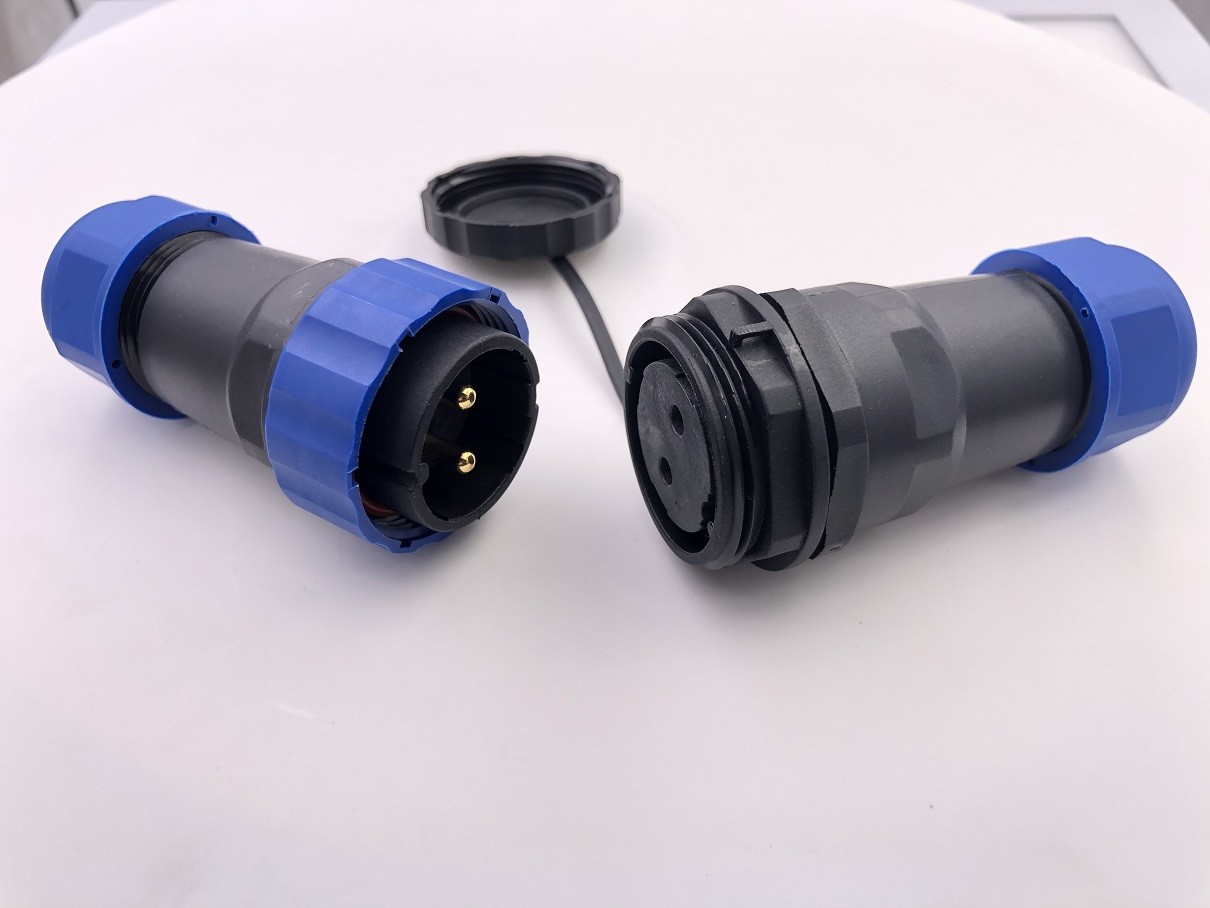

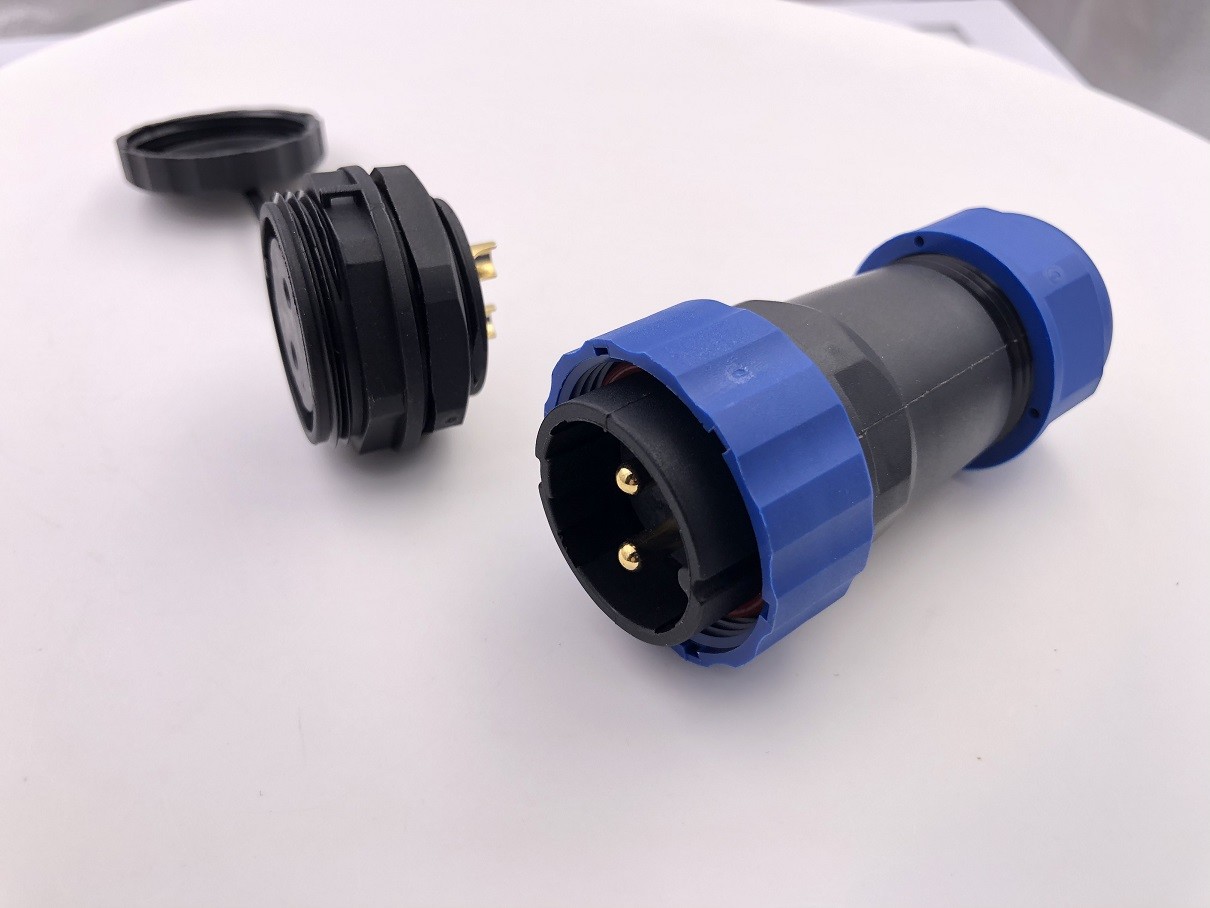

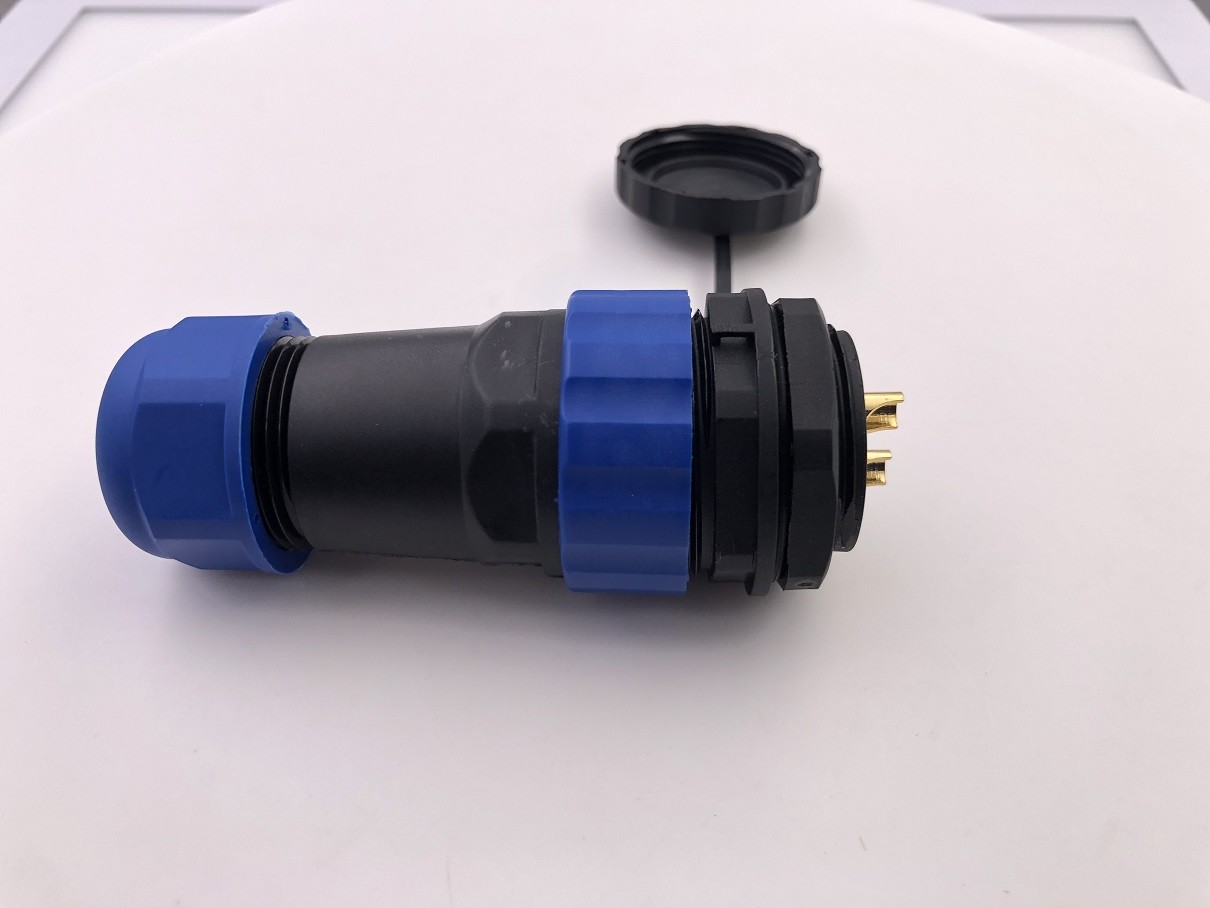

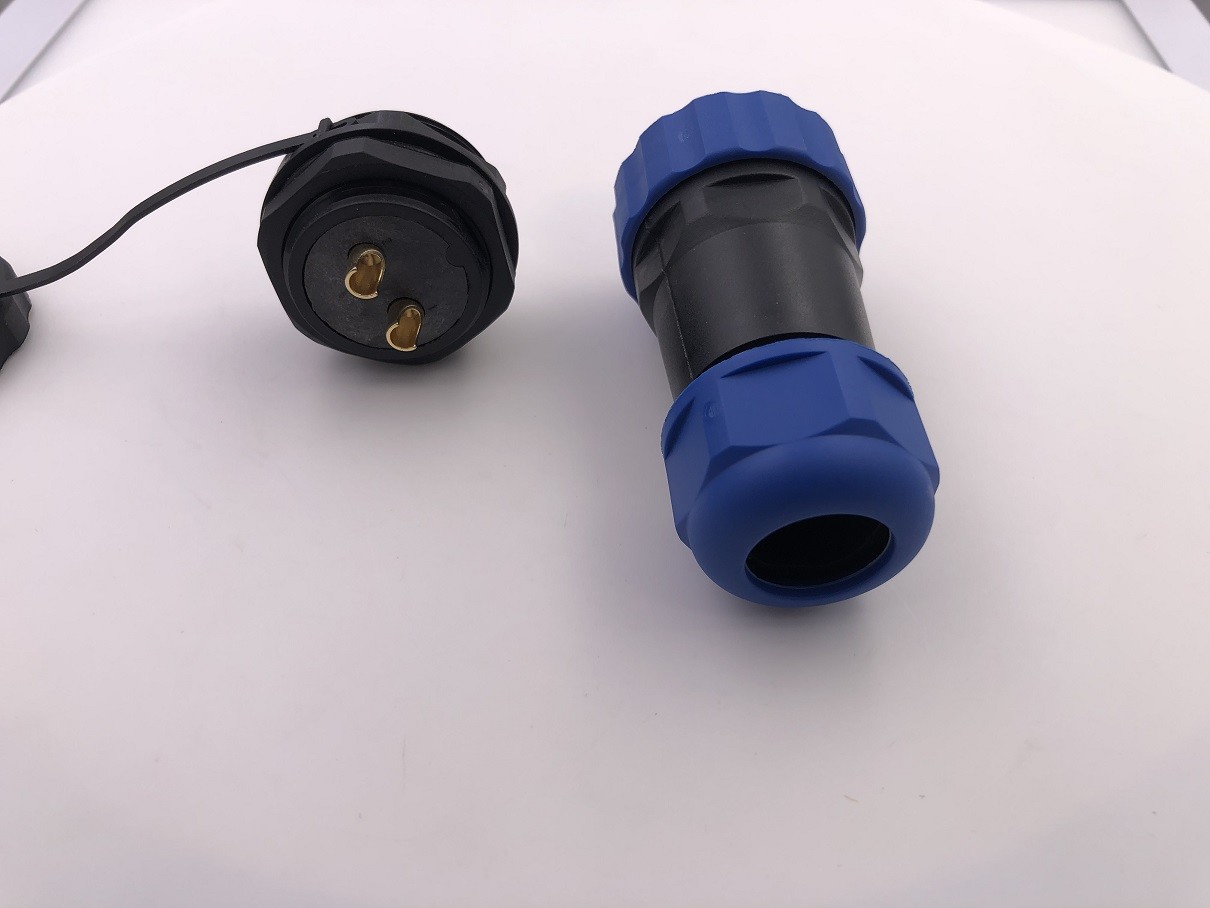

waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables

waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables
waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS
Model Number: SR-C28LMS02-001/SR-C28LFS02-001
Minimum Order Quantity: 500pcs
Price: 3.77 USD per PCS
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 10000pcs per 21 days
Contact Now
Name: M28 Circular Connectors Contact Number: 2 Cores
Gender: Female And Male Interface Mating: M28 Screw Thread
Mounting: For Cables Waterproof Level: IP68
Body Material: PA66 Center Contact Plated: Gold Plated
Cable Spec: Can Be Specified Life Cycle: 500 Cyles
High Light:

circular cable connectors

,

circular pin connector

Products Name: waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables


Products Descrption:

It is an over IP68 level connectors with interface M33 screwthread that it is in mass production, and we supply it as power supply connectors in electric

scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.



Charaterisitcs:



Material:

  1. Product type:wire to wire connectors,

  2. Mating interface: M28, cicurlar screw thread

  3. Mounting: with cables, by soldering, clamping.

  4. Cores:2 cores (can be customized for more cores)

  5.
  6.
  7.

  8. Center Contact: Beryllium bronze, plated Gold

  9.

    Body: PA66,

    Insulator: PPS

    Seal: Rubber

    Tail Nut: PA



Specifcation
Item Description Value
1 All Material RoHS Compliant
2 Waterproof Level

IP67
3 Rated Temperature -25 to 85 Degree
4 Life Cycle 500 cycles
5 Rated Voltage 380V
6 Rated Current 45A
7

Center Contact

plated thickness

 3U Gold
8 Contact Resistance 0.5m Ohms Max.
9 Salt Spray Test Hours 48 Hours









Application: vehicle, oir, aviation, equipment, intelligent robot under the sea,etc.



Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



waterproof IP68 M28 Circular 2 cores female and male socket connectors Mounting with cables 1
