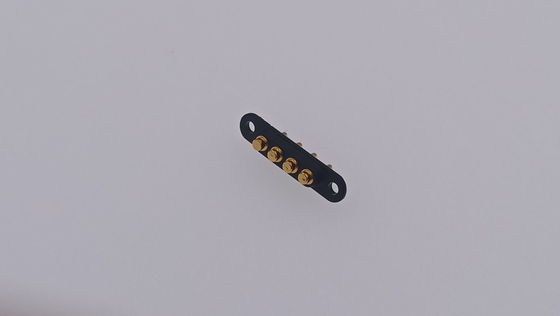

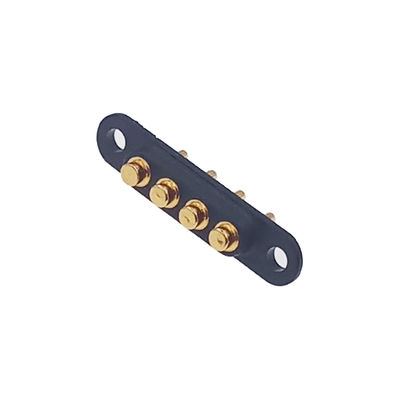

Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm

Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm
Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm
Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS,REACH
Model Number: SRPC-008SS
Minimum Order Quantity: 5000pcs
Price: Conact us
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 20000pcs per 21 days
Contact Now
Name: Pogo Pin Connector Contact Number: 1*4 Pins
Gender: Male Usage: For Charging
Mounting: Straight DIP Panel Mount Package: Tape & Reel
Body Material: UL94V-0 Center Contact Plated: Brass, Gold Plate
Life Cycle: 20000 Cycles
High Light:

1x4P Magnetic Pogo Connector

,

2.54mm Magnetic Pogo Connector

,

2.54mm spring loaded pogo pins

Name : Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm


Products Descrption:

Pogo pin connector, it is popular used for power supply in vehicle,electronics productsrobot, drone.

It brings a fast and accurate matching.



Widely used in communication equipment, computer, controller, anti - theft alarm, intelligent equipment, electrical instruments, automobiles, etc.



Material:



Specification



Material:                             RoHS compliant

Pitch:                                  2.54mm

Rated Temperature:          -25 to 85 Degree

Life Cycle:                          20000 cycles

Rated Voltage:                   12V

Rated Current:                   1A

Center Contact of plated:  Gold

Contact Resistance:          5m ohm, Max.

Salt Spray Test:                 48 hours



  1. Product type:  pogo Pin connectors,

  2. Mating interface: Pogo, Pitch 2.54 mm

  3. Mounting: Straight DIP Panel Mount

  4. Cores: 1*4 Pins (can be customized for more cores)

  5. Center Contact: Brass Plated Gold

  6. Body: UL94V-0

Application:  Eectronics Power charging in PCB Modules.


Function: It provides an excellent electronics conduction, and power charging.



Sinrui's Advantage and Quality warranty for Circular Connectors



(ODM and OEM) Afford Customized design service:

products can be customized according to customer's products usage, including size, contact numbers, shape,

mating interface, cable mounting method, etc.

If our current standard products can not fit your demand perfectly, welcome to contact us for technique support.



R&D testing Corner:



Spring Loaded 1x4P Magnetic Pogo Connector Panel Mount Pitch 2.54mm 1
