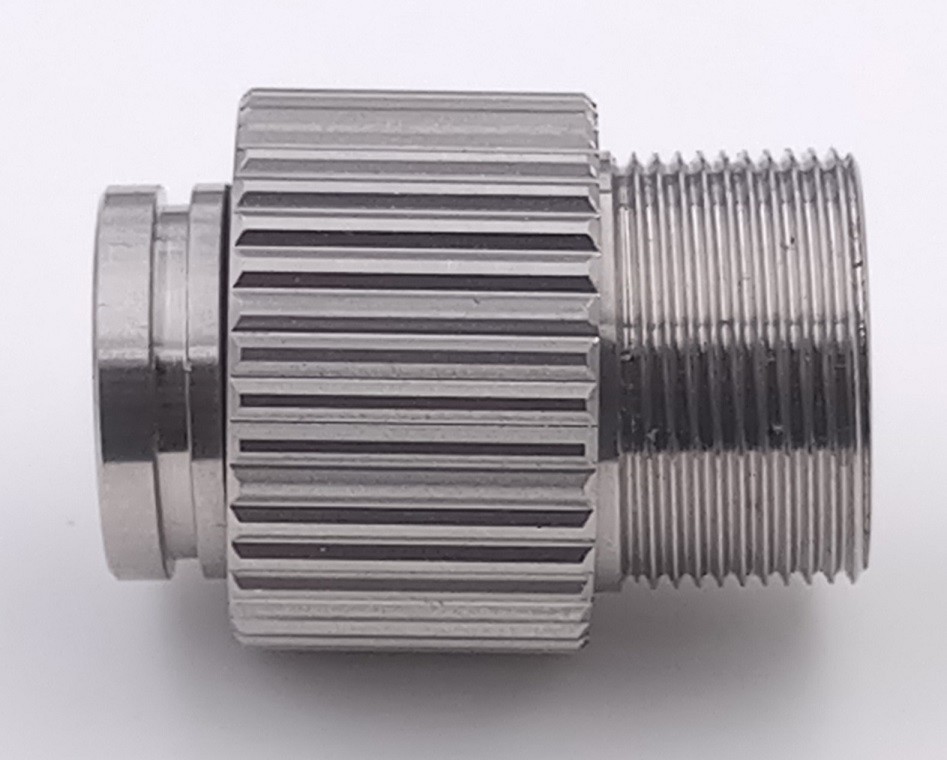

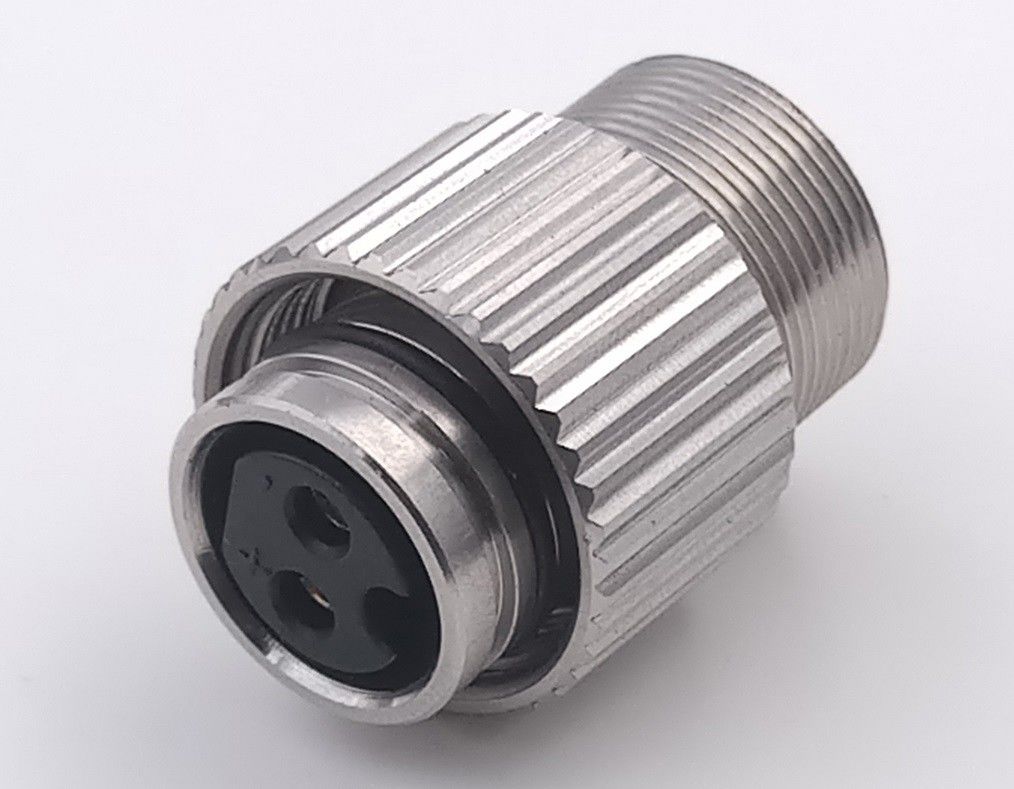

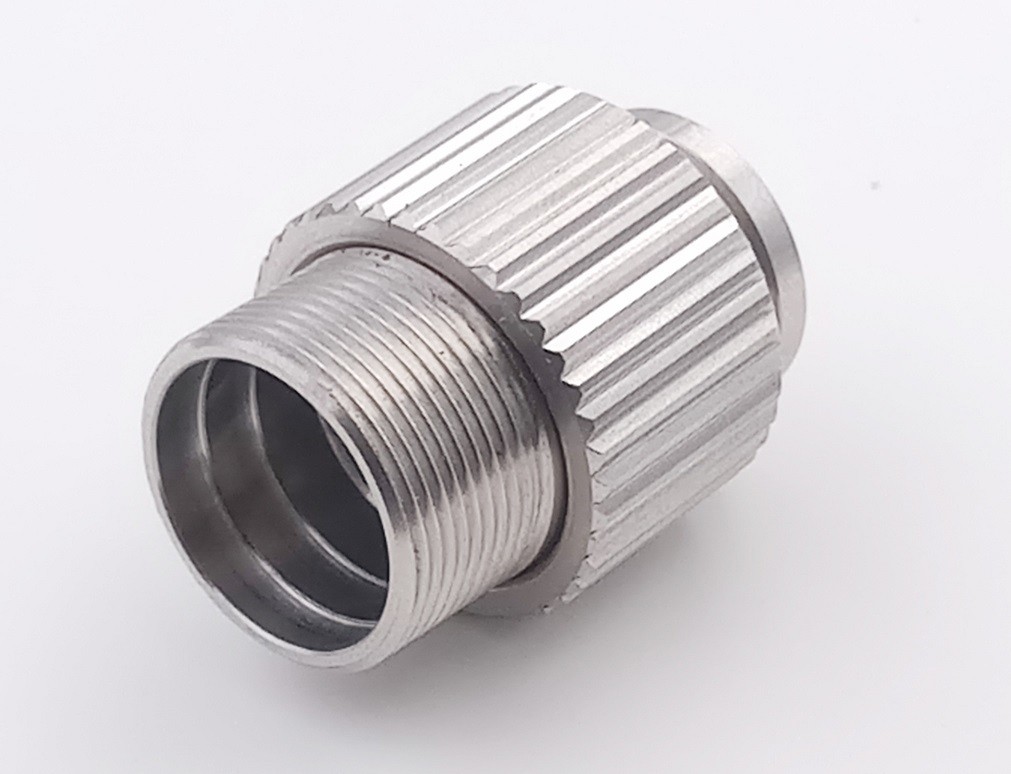

M16 Circular Electrical Connectors IP68 Two Pin Female Connector

Products Name: M16 Circular waterproof stainless steel connectors 2 Cores with cables

Products Descrption:

It is an over IP68 level connectors with interface M16 screwthread that it is in mass production, and we supply it as power supply connectors in electric

scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.

Charaterisitcs:

Material:

1. Product type:wire to wire connectors,

2. Mating interface: M16, cicurlar screw thread

3. Mounting: with cables, by soldering, clamping.

4. Cores:2 cores (can be customized for more cores)

5.
6.
7.

8. Center Contact: Copper alloy, plated Gold

9.

   Body: Stainless Stell,  Passivated

   Insulator: PPS

   Seal: Rubber

   Tail Nut: PA



Specifcation
Item	Description	Value
1	All Material RoHS	Compliant
2	Waterproof Level	Over IP68 (Can work under the sea 80 meters)
3	Rated Temperature	-25 to 70 Degree
4	Life Cycle	500 cycles
5	Rated Voltage	60V
6	Rated Current	30A
7	Center Contact plated thickness	3U Gold
8	Contact Resistance	3m Ohms Max.
9	Salt Spray Test Hours	200 Hours









Drawings:



Application: vehicle, oir, aviation, equipment, intelligent robot under the sea,etc.

Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.
