PCB Mount RF Smb Right Angle Connector Gold Plated For RFID Reader

Basic Information
Place of Origin: China
Brand Name: Sinrui
Certification: RoHS, ISO9001:2015
Model Number: SMB-KWHD1
Minimum Order Quantity: 1000 pcs
Price: USD 0.72 per pcs
Packaging Details: export standard packing
Delivery Time: L/C, T/T
Payment Terms: T/T
Supply Ability: 50000 pcs per 21 days
Interface: SMB Gender: Female
Structure: Right Angle 90° Mounting: PCB Mount
Plated: Gold Frequency: DC 4GHz
Size Customized: Can Be Customized Impedance: 50 Ohms (75 Ohms Is Optional)
Salt Spray Test: 48 Hours Life Cycle: 500 Cycles
High Light:

smb coax connector

,

smb rf connector

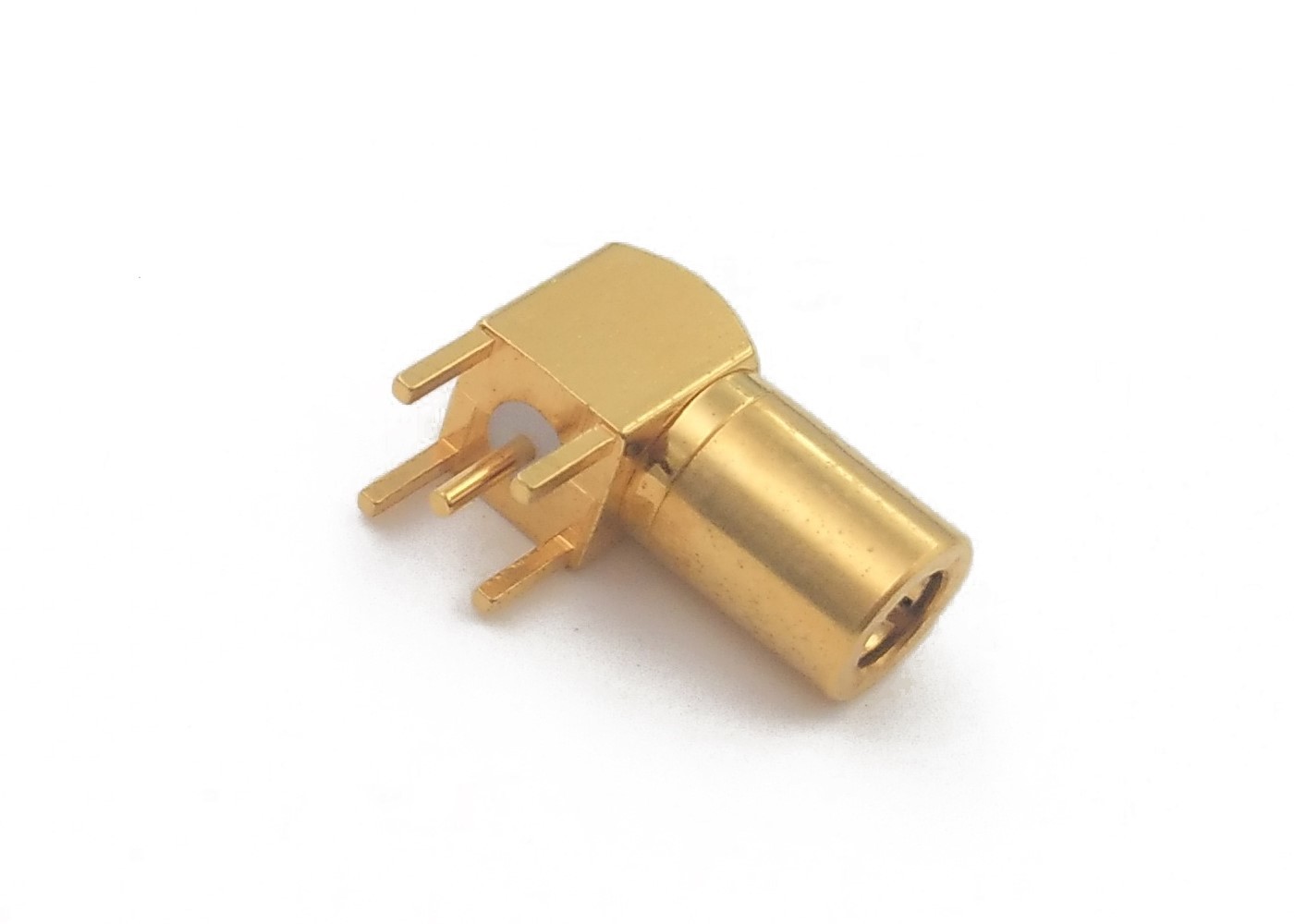

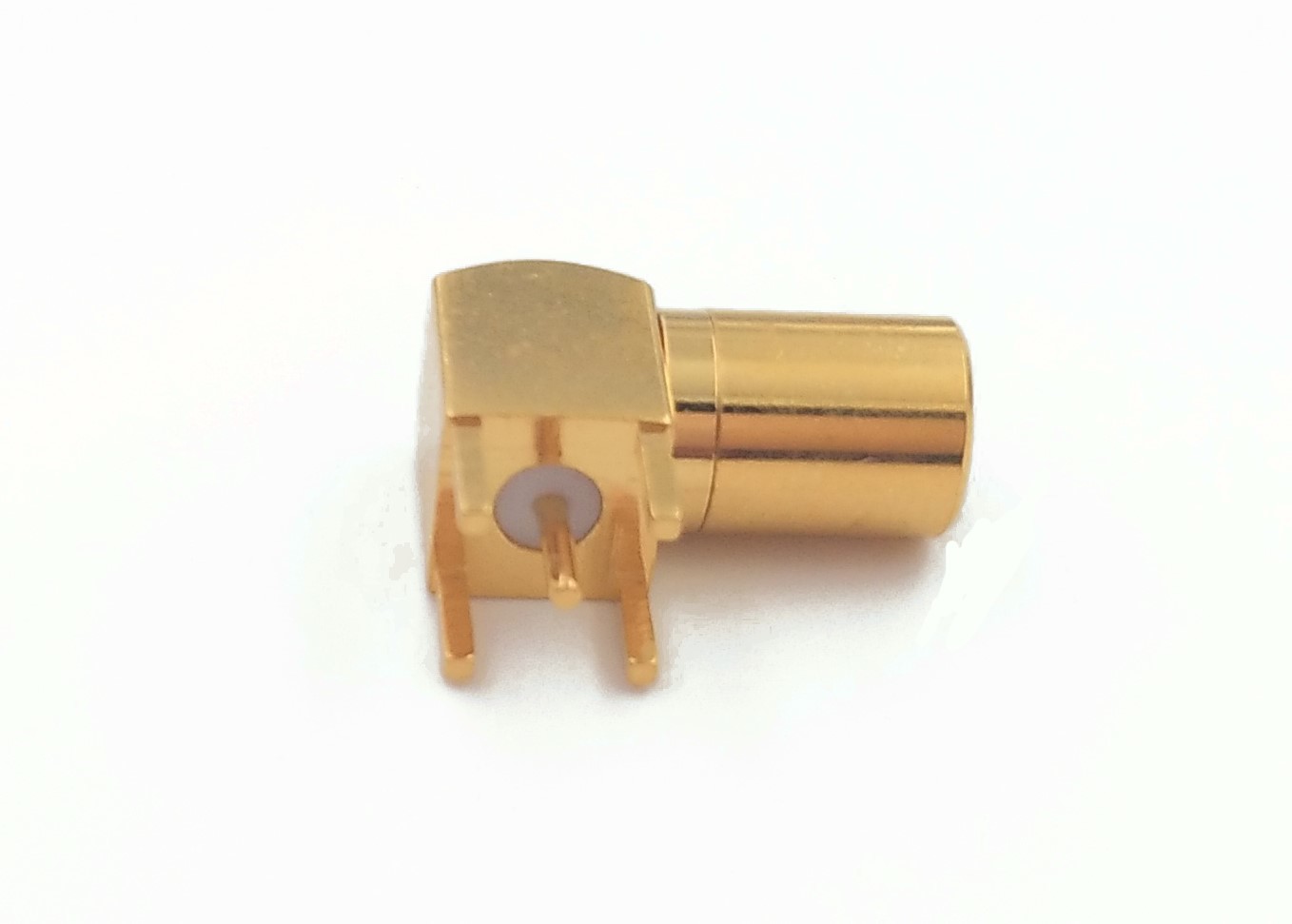

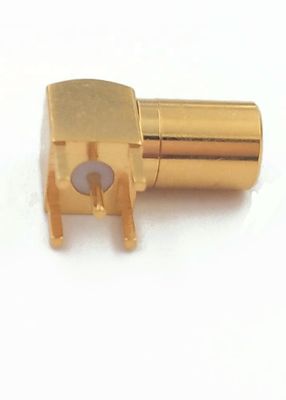

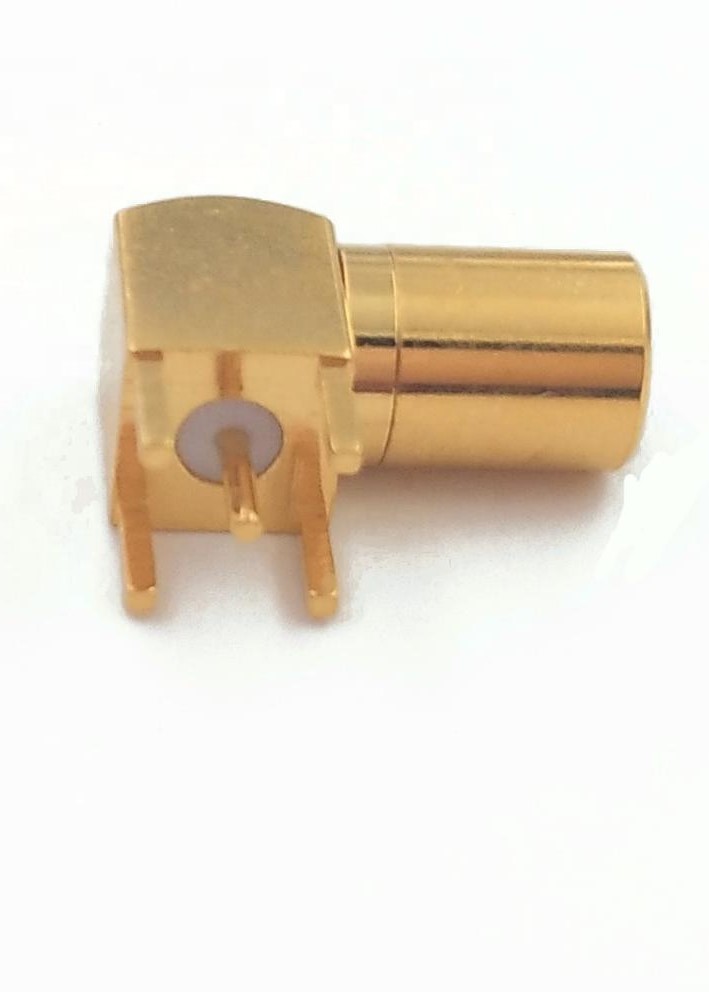

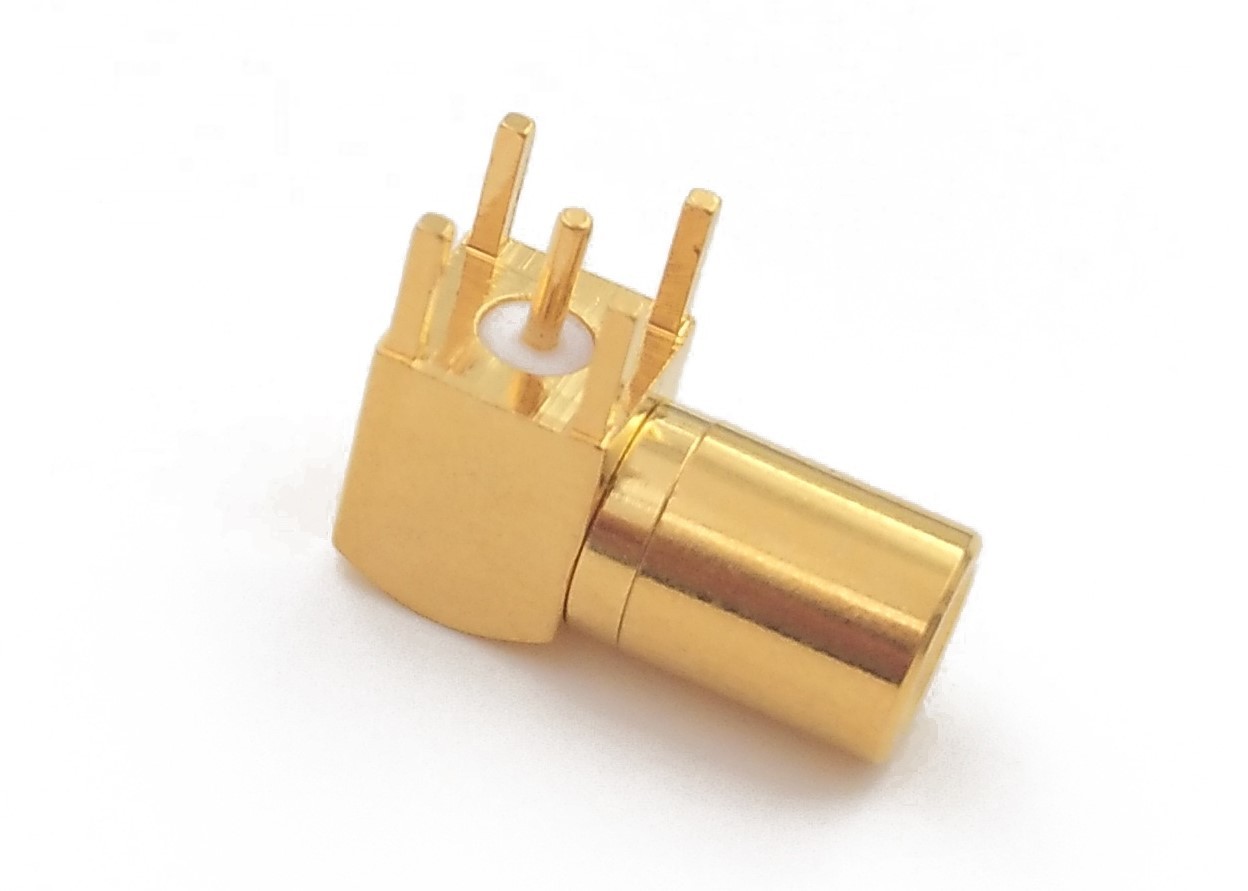

Products Name: RF SMB Connector Female Right Angle PCB Mount Gold plated



Products Descrption:

SMB connectors feature a quick connect/disconnect snap-on coupling and are available either in 50 Ω or 75 Ω impedances. It offers excellent electrical performance from DC to 4 GHz. This series of connectors conforms to MIL-C-39012. This version is smaller than SMA connectors. They are used for inter board or assembly connections within equipment.



Common Application:

we produce and supply in hugh volumn for electronics, communication devices,RFID, laser RF base, NFC devices, tester adapter, etc.



Charaterisitcs:



  1. Interface Standard: SMB

  2. Type: Connector

  3. Gender: Female (Jack) pin

  4. Impedance: 50 Ohms

  5. Structure: Right Agnle 90°

  6. Mounting Type: soldering PCB

  7.
Material
Items Material Plating
Center Contact Phophor Bronze Gold
Body Brass Gold
Insulator PTFE N/A



Specification
Description Value
Frequency DC 4GHz
Impedance 50 Ohms
VSWR 1.35
Insulation Resistance > 1000 M ohms
Dielectric Withstanding Voltage 750V
Contact Resistance for center conductor < 0.006 ohm
Contact Resistance for outer conductor < 0.001 ohm
Life Cycle 500 cyles
Temperature Rated -65 C° to +165 C°





Function: It provides an excellent RF signal transmssion while it can be fast connected and disconnected in application.
