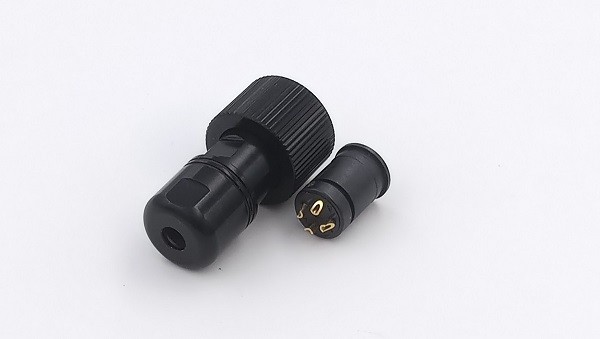

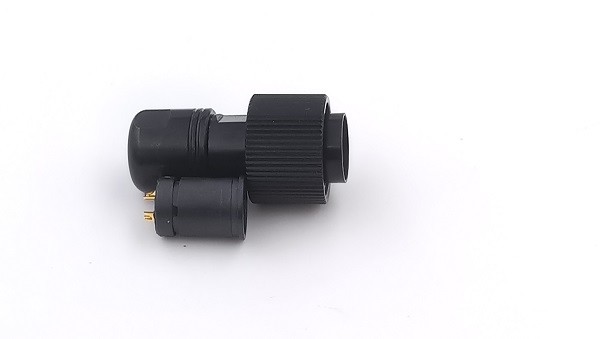

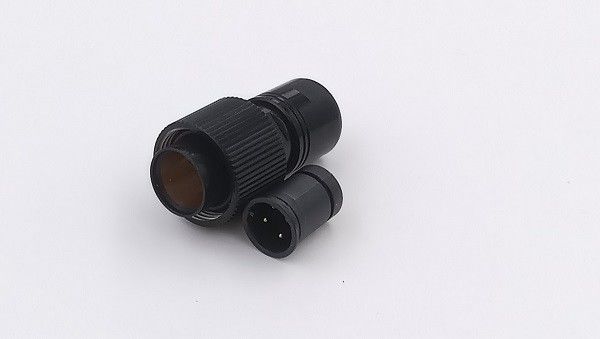

PA66 Circular Waterproof Connector 4 Cores M15 Circular Wire Connector Male Plug

Products Name: Gold plated 4 cores M15 Circular waterproof male plug connectors

Products Descrption:

It is an over IP68 level connectors with interface M15 screwthread that it is in mass production, and we supply it as power supply connectors in electric

scooeter, drone which is working under the sea over 50 meters deep, as well as industrial control devices.

Charaterisitcs:

Material:

1. Product type:wire to wire connectors,

2. Mating interface: M15, cicurlar screw thread

3. Mounting: with cables, by soldering, clamping.

4. Cores:4 cores (can be customized for more cores)

5.
6.
7.

8. Center Contact: Brass, plated Gold

9.

   Body: PA66

   Insulator: PPS

   Seal: Rubber

   Tail Nut: PA



Specifcation
Item	Description	Value
1	All Material RoHS	Compliant
2	Waterproof Level	Over IP68 (Can work under the sea 80 meters)
3	Rated Temperature	-40 to 85 Degree
4	Life Cycle	500 cycles
5	Rated Voltage	200V / AC
6	Rated Current	5A
7	Center Contact plated thickness	3U Gold
8	Contact Resistance	5m Ohms Max.
9	Salt Spray Test Hours	200 Hours





Drawings:







Application: vehicle, oir, aviation, equipment, intelligent robot under the sea,etc.

Function: It provides an excellent electronics conduction, and power charging, meanwhile it can bring you good dust and waterproof.
